The BGS technology allows for precise detection of objects regardless of their color or surface material, making it ideal for industrial automation and quality control processes. The V5ZL-BG150P with lign spot for various size and form objects features a robust and compact design, making it suitable for harsh industrial environments. With its fast response time and high measurement accuracy, this sensor ensures efficient and reliable operation, contributing to improved production efficiency and product quality. The V5ZL-BG150P is easy to install and integrate into existing production lines, making it a cost-effective solution for businesses looking to enhance their manufacturing processes. With its user-friendly interface and durable construction, this sensor is the perfect choice for industrial automation applications requiring accurate and consistent object detection.

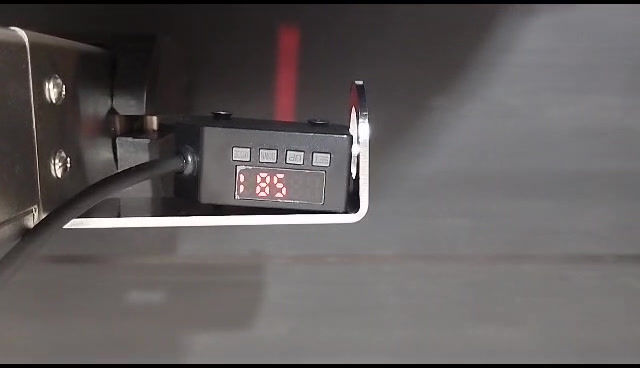

V5ZL-BG150P
OPTICAL INFORMATION:
Sensing distance 30mm ~ 200mm (min.2mm Opaque objects) Type of light Red LED lign light source Light spot size 25*5.5mm (30mm) to 120*10mm (200mm) Light wave length 650 nm Operating principle Diffuce-reflective Line Spot BGS sensor ELECTRICAL INFORMATION:
Operating voltage, +UB 12-24VDC ±10%， Ripple P-P 10% or less. No-load current, Io ≤ 30 mA Output current, Ie ≤ 100 mA Protective circuits Reverse -polarity protection, UB / short-circuit protection Switching output, Q PNP Output function N.O (Dark ON) / N.C (Light ON) via display buttons settings ( delay option availible ) Switching frequency, f (ti/tp 1:1) ≤ 1000 Hz Response time ≤ 0.5 ms Control input, IN Digital display, preset value (4-digit red LED), current value (4-digit red LED).
The current value is displayed after power on, and the current value range is 4089Wires defalt output + (Brown wire) \ - (Blue wire) \ Otput (Black wire NO output) \ Output ( White wire NC output) MECHANICAL INFORMATION:
Dimensions 18.2mm (W) * 29.7mm (L) * 42mm (H) Enclosure rating IP 65 Material, housing ABS Material, front lens PMMA Type of connection PVC cable 2m Ambient temperature: operation -10 … +55 C no frezing Weight (M8 plug) N\A Weight (cable type) 53 g² with 2m cable FUNCTIONALITY INFORMATION:
Indicator LED, green Operating voltage indicator Indicator LED, yellow Switching output indicator Sensitivity adjustment Digital display, preset value (4-digit red LED), current value (4-digit red LED).
The current value is displayed after power on, and the current value range is 4089Adjustment possibilities N.O (Dark ON) / N.C (Light ON) via display buttons settings ( delay option availible ) Default settings Depends from SET button press and distance to object (note1) The default measure temperature conditions is +23 ℃，when didn’t specify measure condition.
(note2) Detection range and hysteresis of diffuse reflective type sensor apply to detection objects of min.2mm Opaque objects.
(note3) Please use actual sensor to validate testing effect, before testing transparent or translucent object.
